Universal M25XPB Engine Monitoring Actisense EMU-1 setup
Since the day 1 we own Hotel Catalina, our Catalina 36, I have been looking to monitor the engine and get the analog data from our Universal M25XPB broadcasted on the NMEA2000 network.
Last may I finally decided to order an EMU-01 and the NGT-1 mandatory to the setup of the device.
Now why I decided on the EMU-01 versus the NoLand Engineering RS11 (http://nolandeng.com/rs11.php) or any other alternatives:
- active community online
- active on signalk project and slack channel
- support is active and helpful (https://desk.zoho.eu/portal/actisense/home)
- looking more like a serious business compared to other alternatives

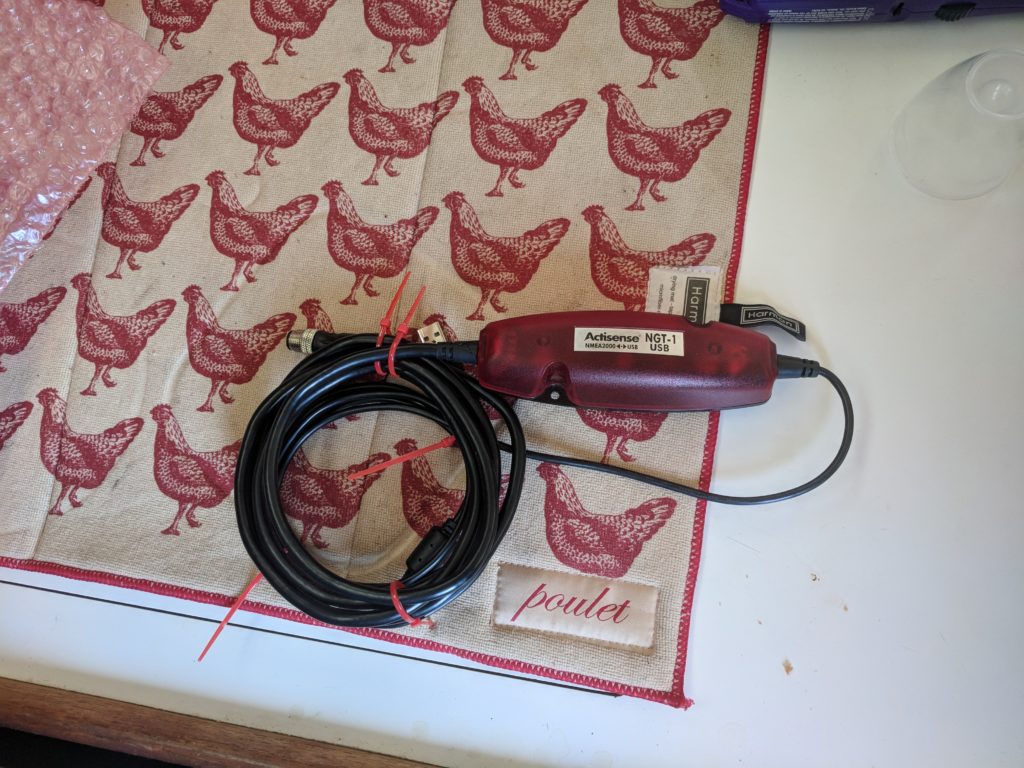

Here is the Actisense NGT-1 I bought used on ebay

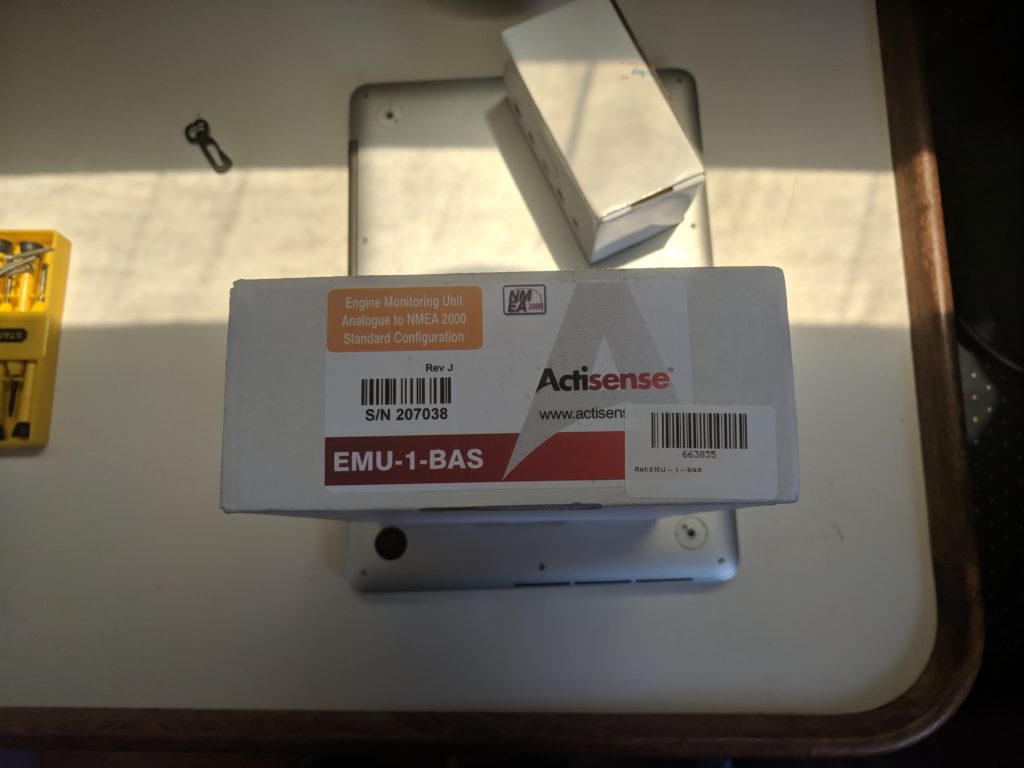

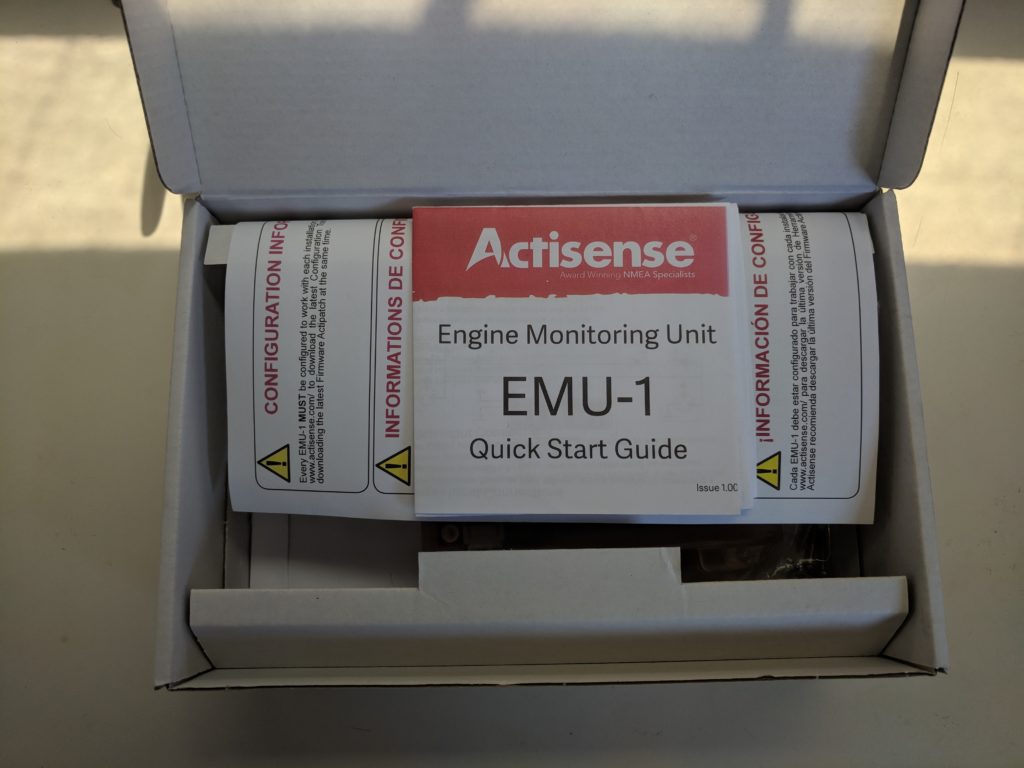

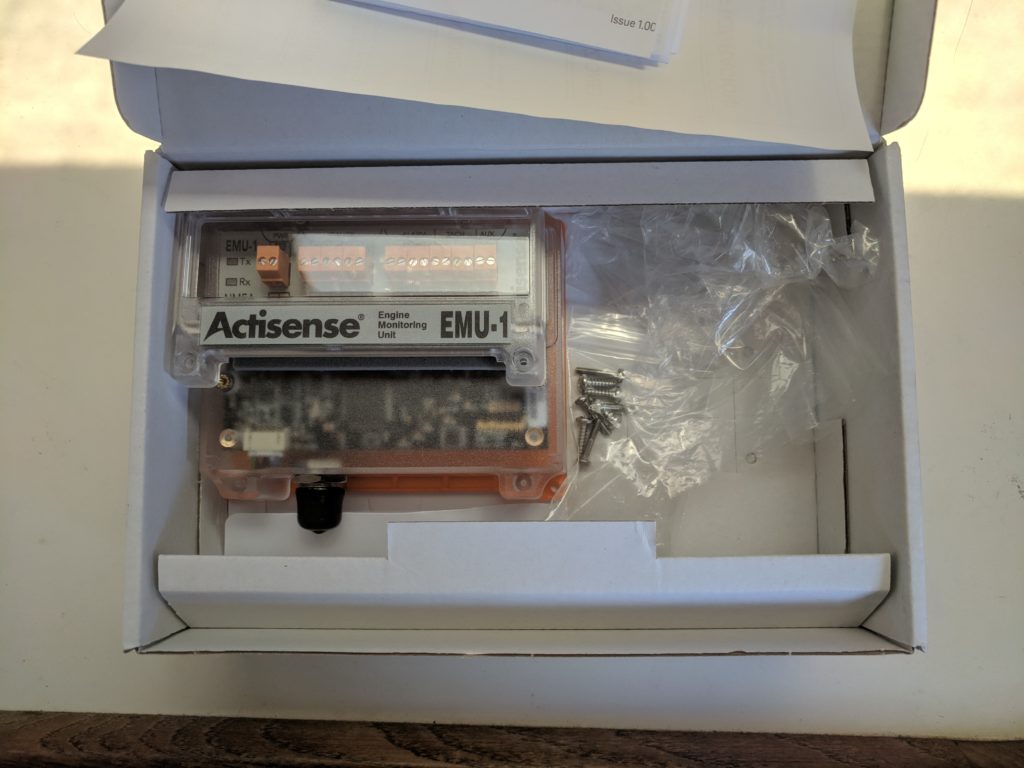

Actisense EMU-1 unboxing
Ordered the EMU-1, love the form factor of the product and the mechanical design of the box. Definitely a reference on the market.

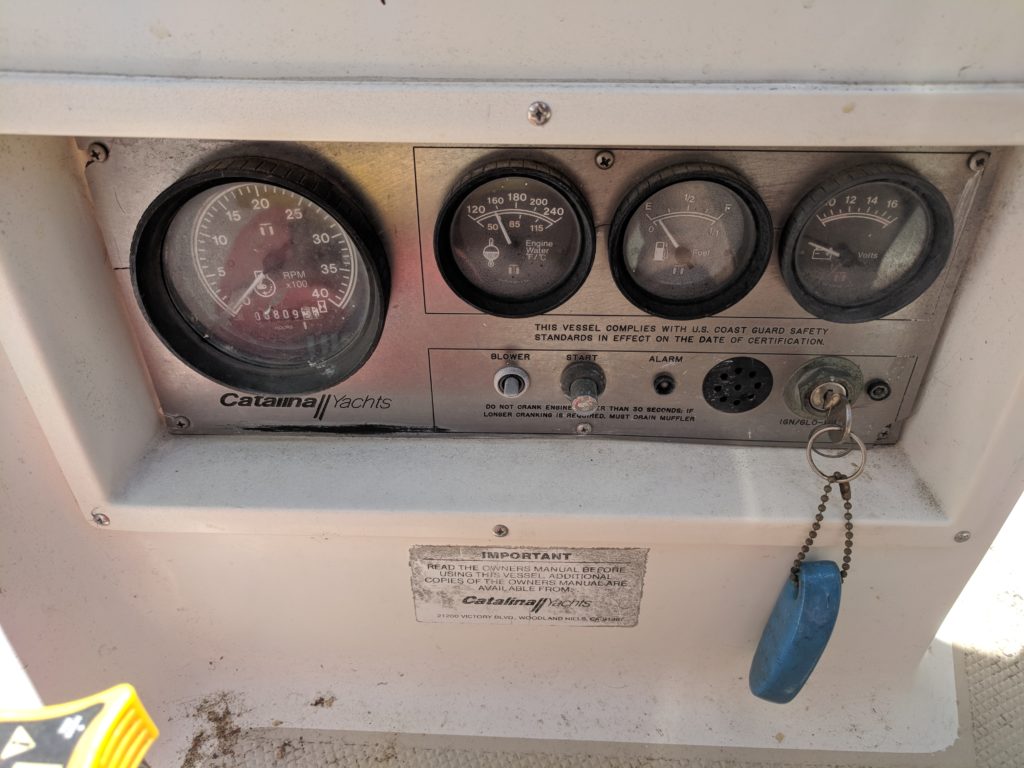

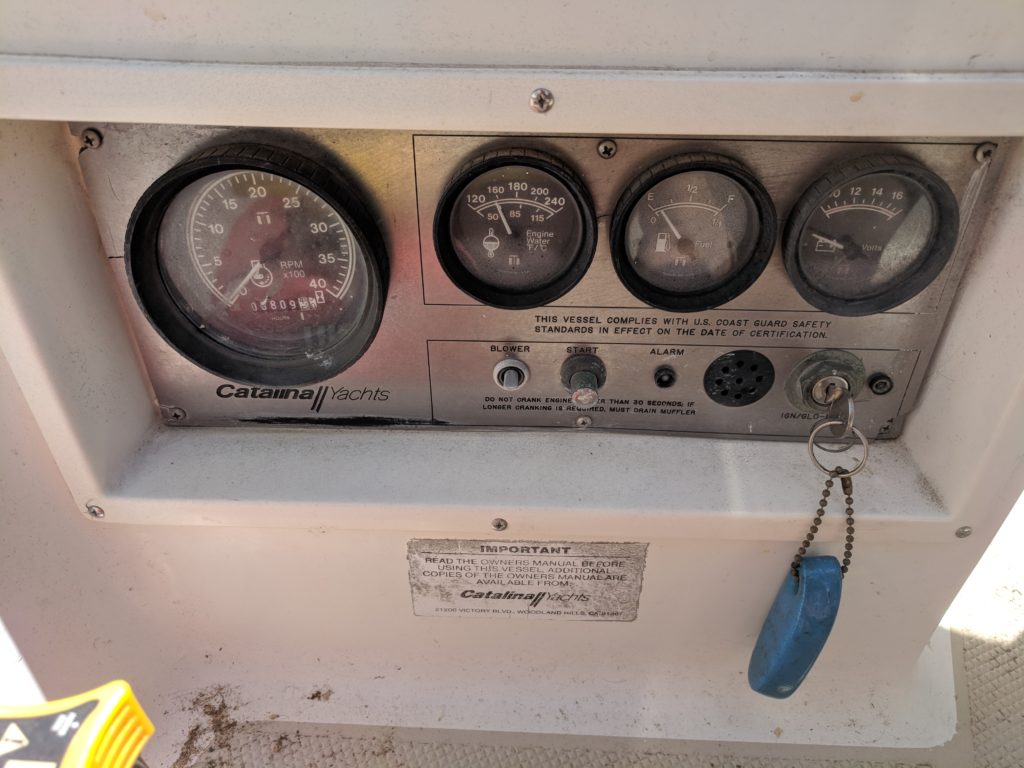

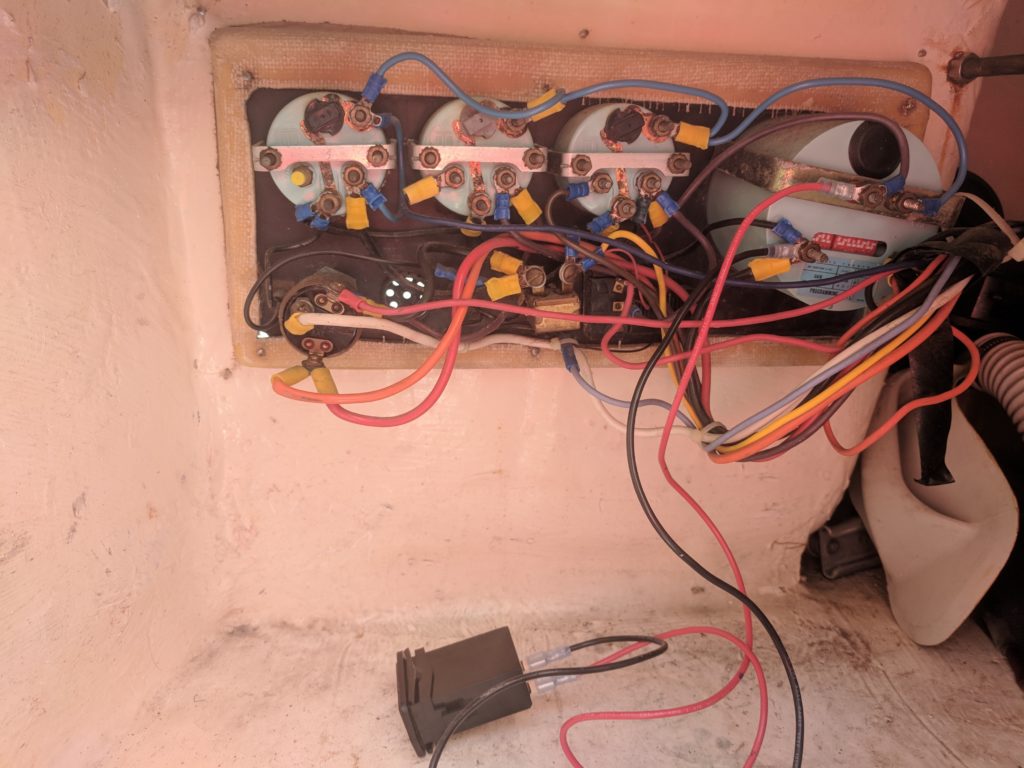

Universal M25XPB engine panel
Here my engine panel, where I am going to get the data from and where I am going to plug the EMU-1 box.

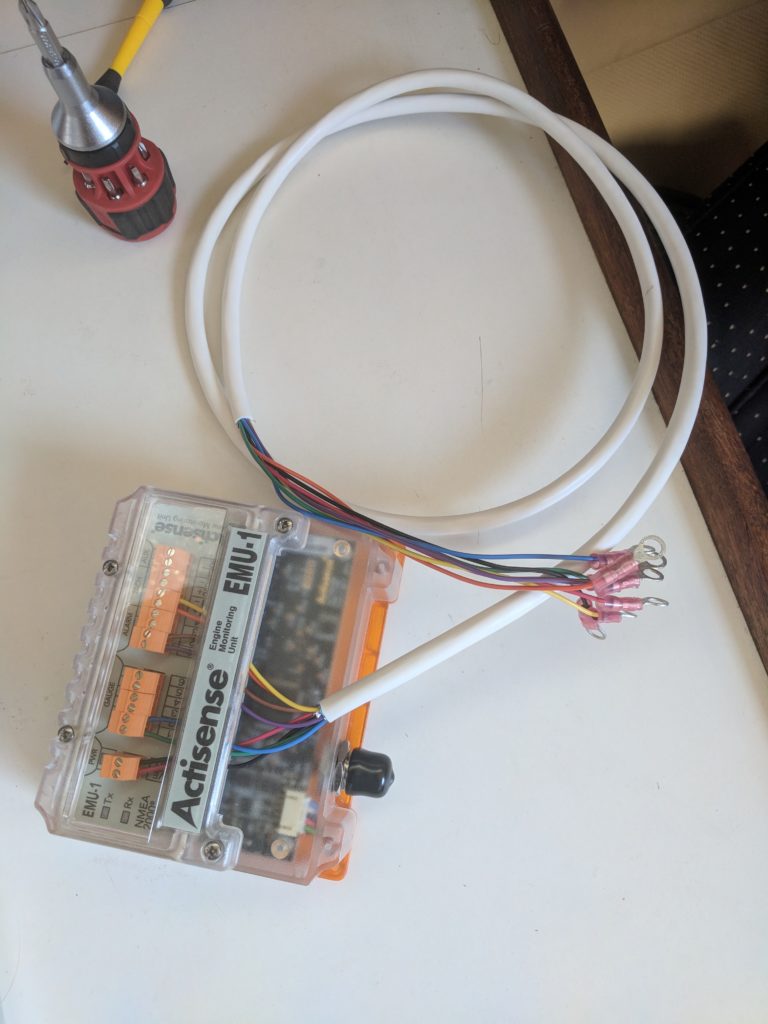

Custom harness to connect EMU-1 to Hotel Catalina engine panel

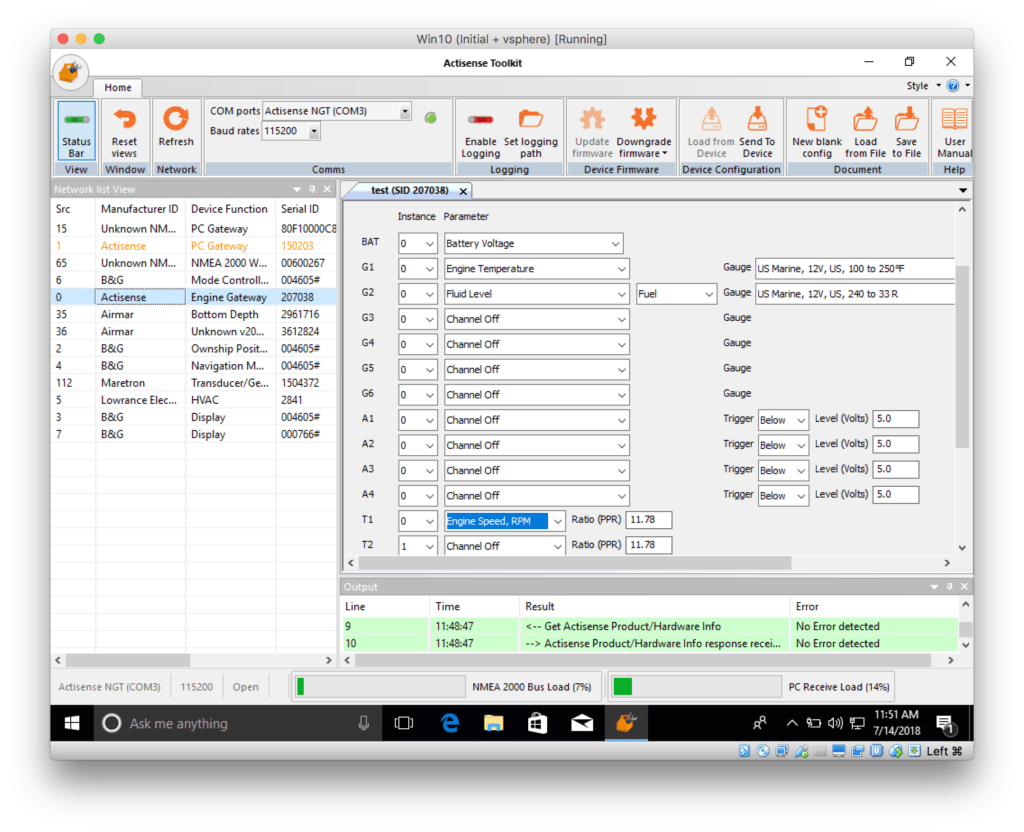

Actisense Toolkit configuration
Herei is my issue, I don’t have any idea what type of gauge I should pick, and all the one I tested doesn’t seem to match what is going on.
Right now my gauges are all Teleflex. Time to contact Actisense support 🙂

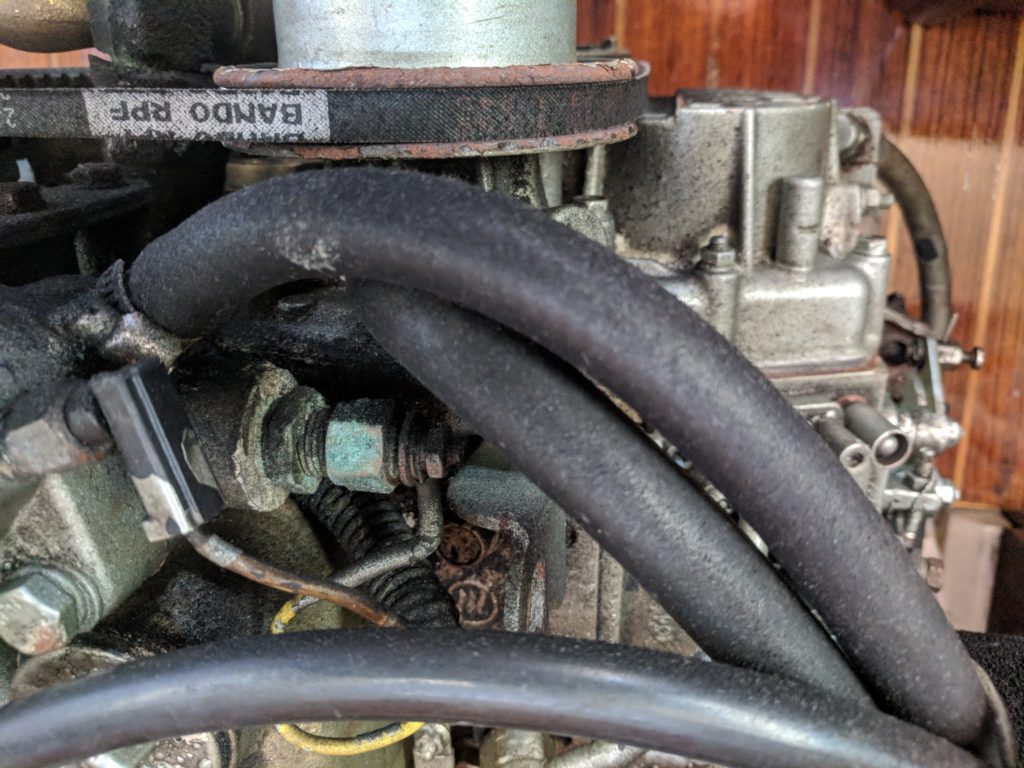

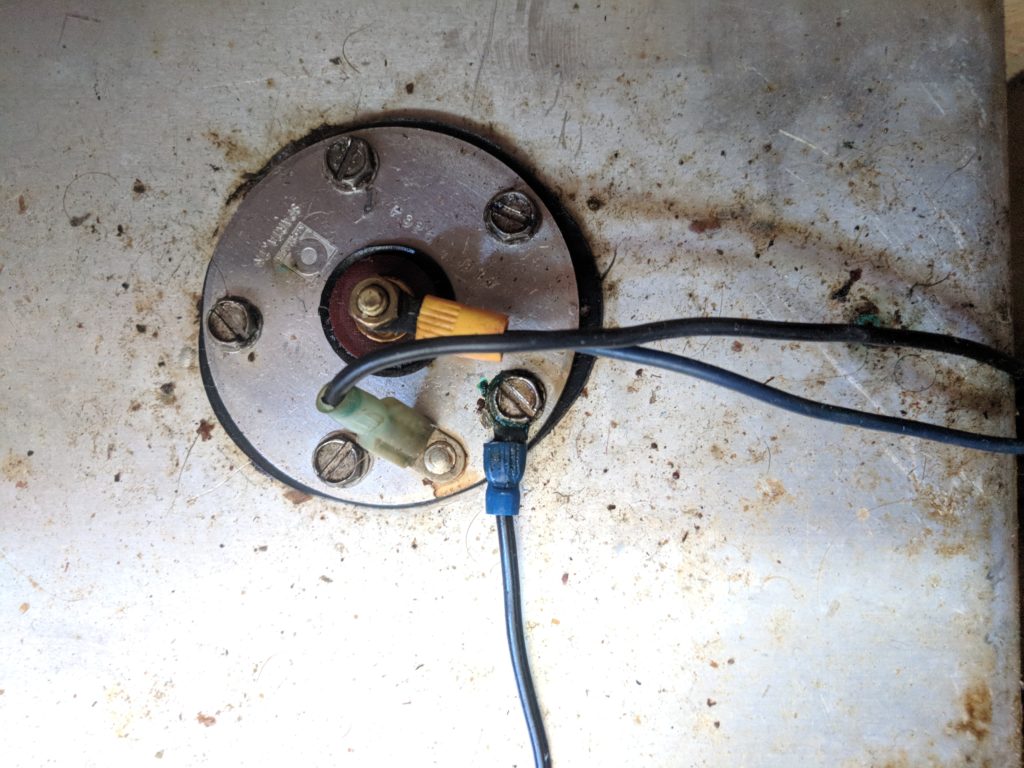

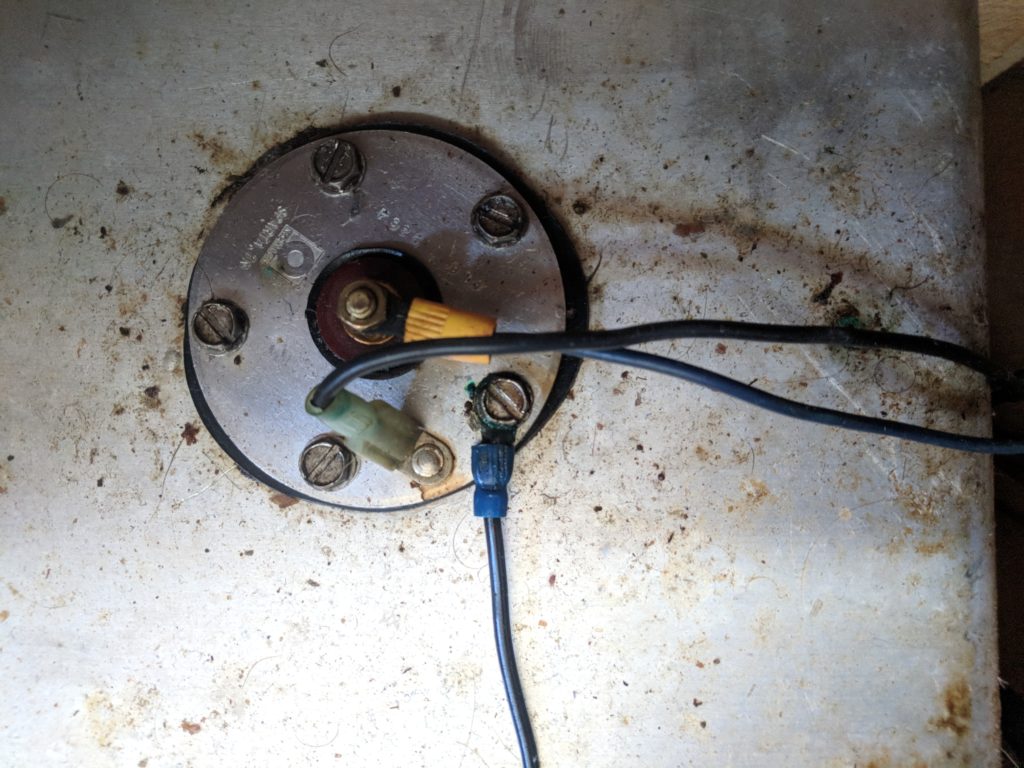

Fuel level sensor
Water temperature sensor

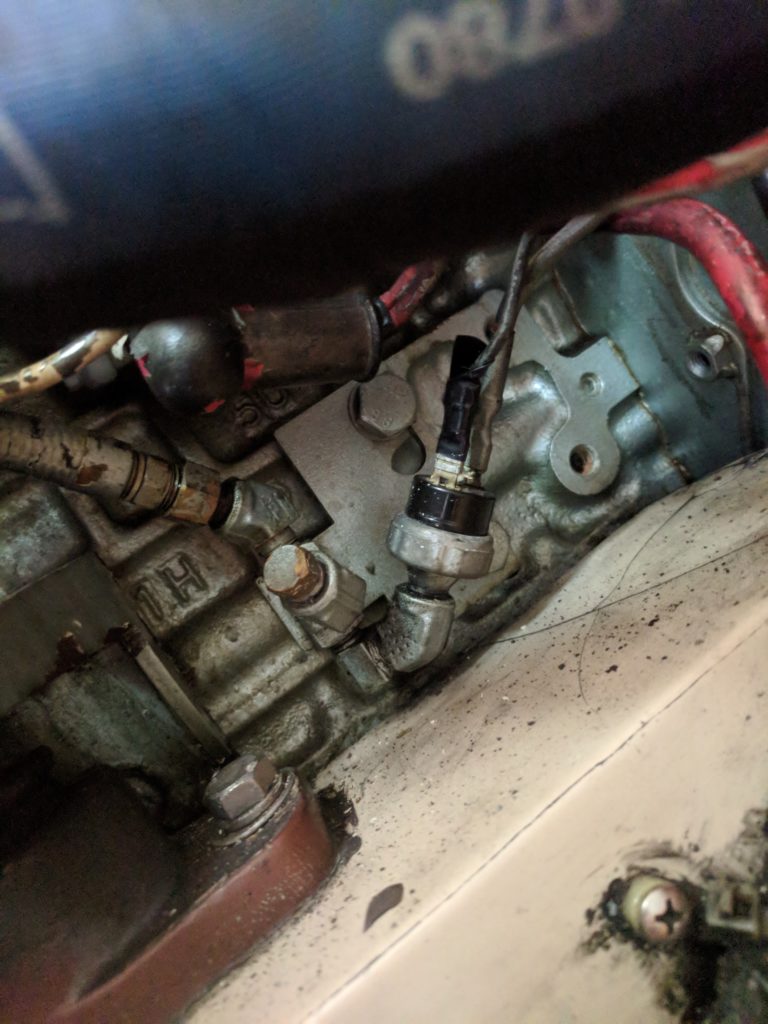

Oil alarm sensor
